Macula Plus® 5.5 Lens VOLK
This lens sports a 5.5x magnification, the highest in the BIO lens range, ideal for optic disk and macular examination.
| Shipping within | 2 dni roboczych |
| Shipping price | The Lack Of |
| The Availability Of |
dostepny
|
| Pełna oferta Volk Optical USA | |
| The bar code | |
| EAN | |
PART #VMP5.5
This lens sports a 5.5x magnification, the highest in the BIO lens range, ideal for optic disk and macular examination. The double aspheric design provides excellent stereopsis for detecting subtle details and indications of retinal abnormalities. The optical profile of this lens requires a longer working distance of 80 mm from the patient. An adapter is provided with every Macula Plus lens to help stabilize the lens during use and also helps handle the large diameter of the lens. This lens is a great choice for doctors to characterize macular abnormalities such as age-related macular degeneration.

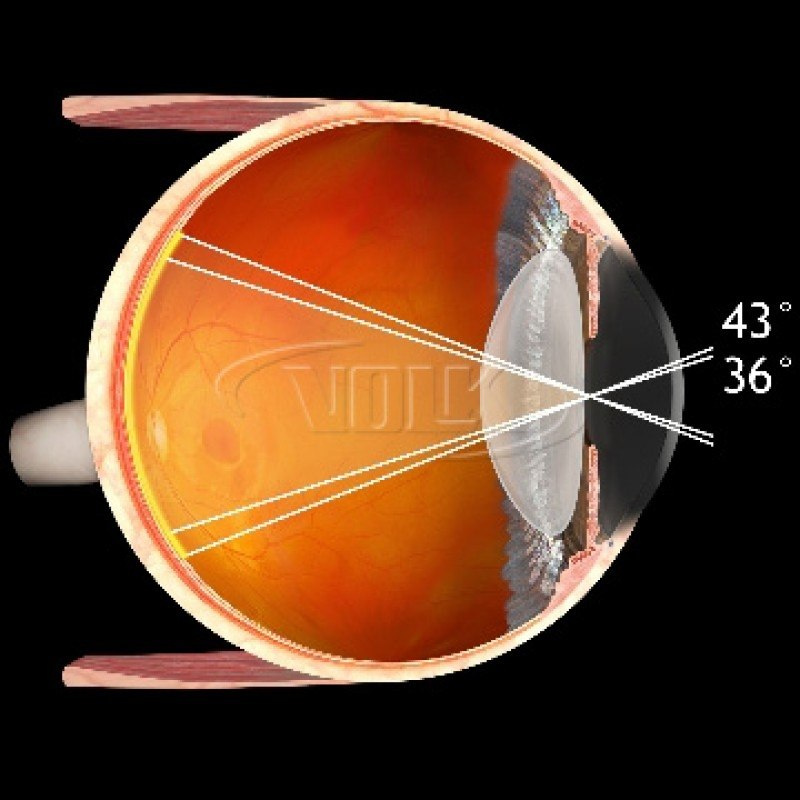

| Field of View | Image Magnification | Laser Spot Magnification | Working Distance |
| 36° / 43° | 5.50x | 0.18x | 80 mm |
Safety Information
BIO AND SLIT LAMP LENSES:
Do not use a microfiber cloth, as over time these tend to collect dirt and dust which can damage the anti reflective coating on the lens.
Never use a device that shows any sign(s) of damage.
Failure to follow the point-of-use processing steps could adversely affect further decontamination steps.
Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the member state in which the user and/or patient is established.
A thorough, manual cleaning process is recommended. Corrosive cleaning agents (i.e. acids, alkalines, etc) are not recommended. Detergent cleaning agents with neutral ph are recommended.
Do not use detergents that contain any type of emollients.
Wiping the lens with a microfiber cloth will cause lens damage. Be sure to use only a soft, lint-free
cotton cloth.
Ensure the device is completely submerged in the disinfectant solution for the entirety of the recommended or desired soak time. Do not allow the device to become unsubmerged from the disinfectant solution. Exposure to disinfectant solutions beyond the recommended soak time, and/or exposure to higher concentrations of disinfectant solution, will result in accelerated degradation of most Volk product.
Colored rings may discolor when exposed to Sodium Hypochlorite or Glutaraldehyde. To avoid further degradation please follow only the disinfection procedures indicated for these products in instruction. This color change is purely cosmetic and will not affect the function of the lens.
Do not brush lens portion to avoid scratching. Use a soft, cotton cloth.
To avoid product damage, never autoclave or boil lenses or adapters.
For use by trained personnel only.
Manufacturer details
Volk Optical INC.
7893 Enterprise Dr, Mentor
OH 44060 Mentor,
United States
+1 440-942-6161
volk@volk.com
Responsible person
Rudolf Riester GmbH
Bruckstrasse, 31
72417 Jungingen
Germany
+49747792700
pfister@riester.de
